luer adapter kits

How often have you wasted time looking for the right component to interface a small piece of tubing to a microfluidic chip equipped with Luer connectors? “Too often” is the answer in our case.

That does not have to be the case – we offer kits containing Luer adapters to interface your chips with the most common types of tubing. And, at less than $1/piece, these kits will save you money as well as time.

Available in two versions: Acetone-compatible, and Methanol-compatible.

If you will be using Acetone, select kit # LK-ACET-52. This kit can also be used with water and isopropanol.  Warning: The components found in this kit should not be used with Methanol (MeOH). They will swell after prolonged contact with MeOH.

If you will be using Methanol, select kit # LK-MEOH-52. This kit can also be used with water and isopropanol.  Warning: The components found in this kit should not be used with Acetone. They will degrade immediately (with severe impact) if placed in contact with Acetone.

If you are planning on using both Acetone and Methanol we do not recommend that you use Luers; consider using Upchurch PEEK connectors instead.

SPECIFICATIONS:

Description

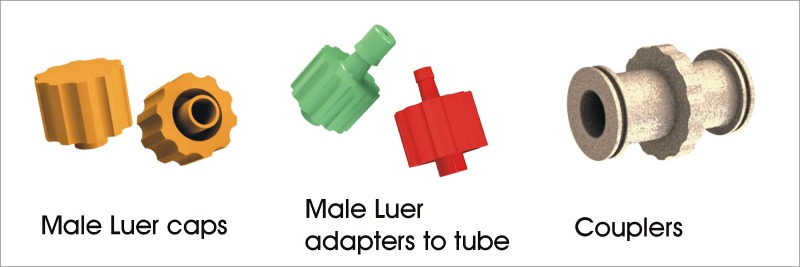

Each kit contains 52 elements:

• 12 Male Luer Caps
• 12 Male Luer Adapters to tube with ID 1/16" (1.6 mm)
• 12 Male Luer Adapters to tube with ID 3/32" (2.4 mm)
• 12 Male Luer Adapters to tube with ID 1/8" (3.2 mm)
• 4 Couplers (female Luer to female Luer)

Material

• LK-ACET-52: Nylon
• LK-MEOH-52: Polycarbonate

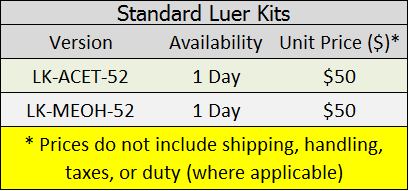

Select the kit(s) you would like to purchase from the table below. Contact us either by email or call our Sales office directly at (734) 528 6371 to place your order.
